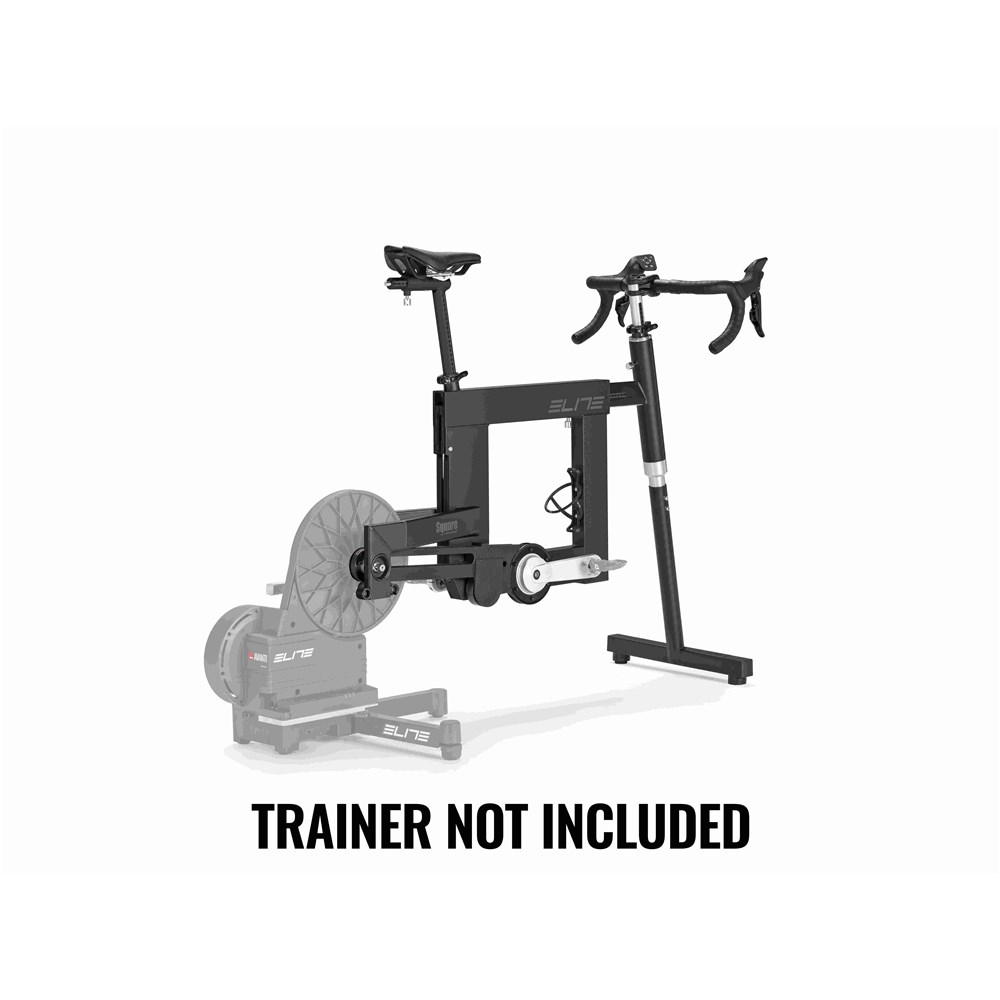

Square is a smart frame with high-end virtual shifting for indoor training that mirrors your bike’s components down to the exact drivetrain
Square lets you customise the controls and match them to Shimano, SRAM or Campagnolo so riding indoors feels just like your own bike.
How Can I Use the Square Smart Frame?
Use Square with the Elite ecosystem
Square works as a team with Elite smart trainers: Justo and Justo 2, Avanti (including Avanti with Zwift Cog and Click), the entire Direto family (Direto, Direto X, Direto XR, Direto XR-T, Direto XR Cog, Direto XR Team), Rivo and Rivo with Zwift Cog and Click, Suito and Suito-T. The first step is simple: pair your trainer with Square from the dedicated app.
OTHER BRAND (non-Elite) COMPATIBLE TRAINERS:
Magene: T600/Eco, T300/Plus, T500, T200 (v2), T110
Van Rysel: D100, D500, D900
Saris: H3, H4, H2
Tacx: Flux, Neo 2T, Neo 3M (with oscillation disabled), Flux 2 Smart, Flux S Smart
Wahoo: Kickr V4, Kickr V5, Kickr V6, Kickr Core, Kickr Move (with oscillation disabled)
Zwift: Hub
Zycle: Smart Zdrive, Zmart DPro
Kinetic: R1, T-7000
JetBlack: Victory, Volt
For trainers not included in the list above, it is advisable to verify their structural compatibility with Square before purchasing.
In addition, the trainer must support the FTMS protocol to ensure correct data transmission.
Customize Every Detail
From the saddle to the pedals, you can adjust Square to faithfully replicate the frame and drivetrain of your bike.
Use All Your Favorite Apps
No limitations: Square allows you to train on any app. Connect your Elite smart trainer and all your favorite cycling apps for maximum freedom in your workouts.
Virtual Shifting and Customizable Gearing
Square allows you to replicate the three main manufacturers, Shimano, SRAM, and Campagnolo, with customizable configurations for gears and sprockets to exactly replicate your bike’s drivetrain
What You Can Do
Choose cassettes with 10/11/12/13 speeds, selecting the number of teeth for each cog, from 9 to 52. Select configurations with 1, 2, or 3 chainrings, as well as the number of teeth for each chainring, from 60 to 22. Train immediately with pre-set profiles: By course type (Flat Rides, Mountain Climbs, Hilly Courses), With Shimano 12-speed (11-30).

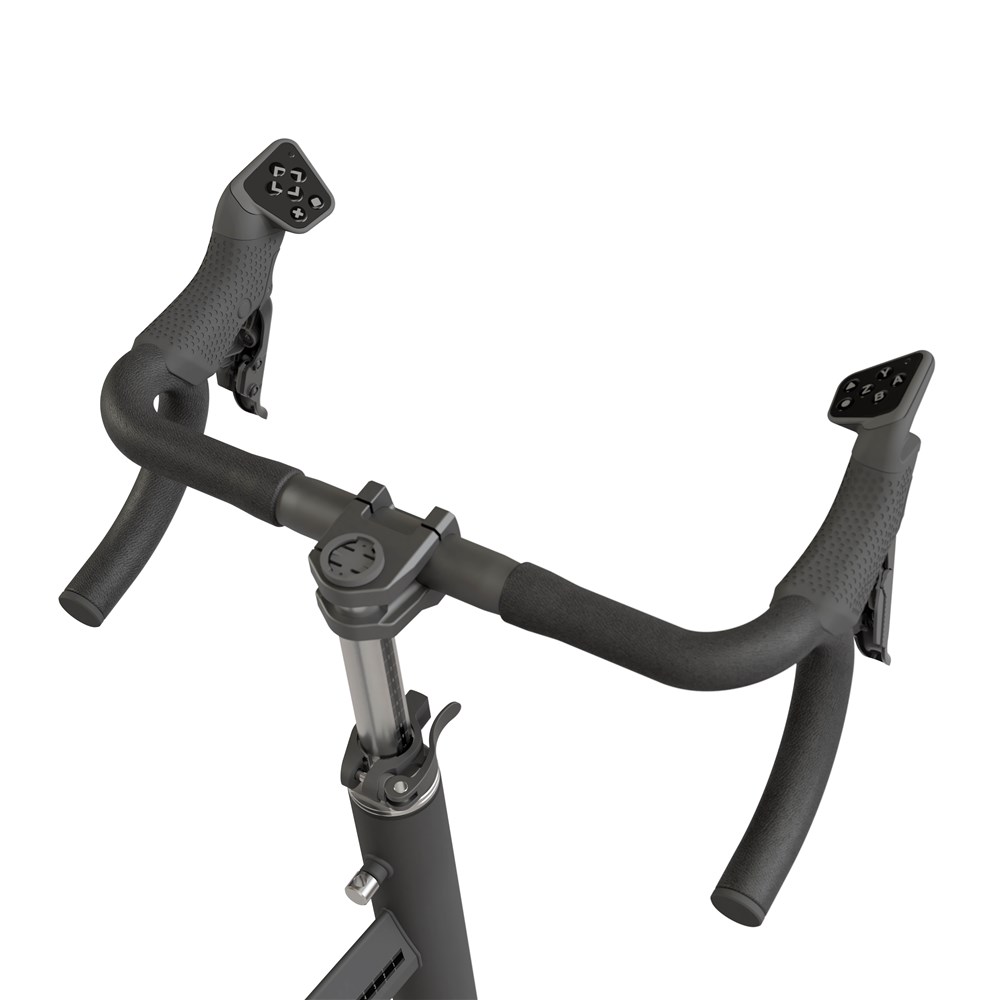

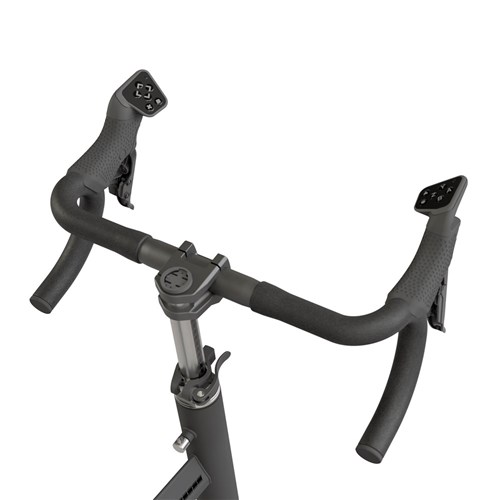

Multi-Function Handlebar
The handlebar includes the same buttons and levers for shifting and braking that you would find on bikes with Shimano, SRAM, or Campagnolo shifting systems, positioned and functioning the same way on the Square
Fully Customizable from XS to XL
Square's adjustable design offers unparalleled adaptability, allowing you to effortlessly replicate the measurements of bikes of varying sizes and heights, with adjustable options ranging from XS to XL.
Adjustments:

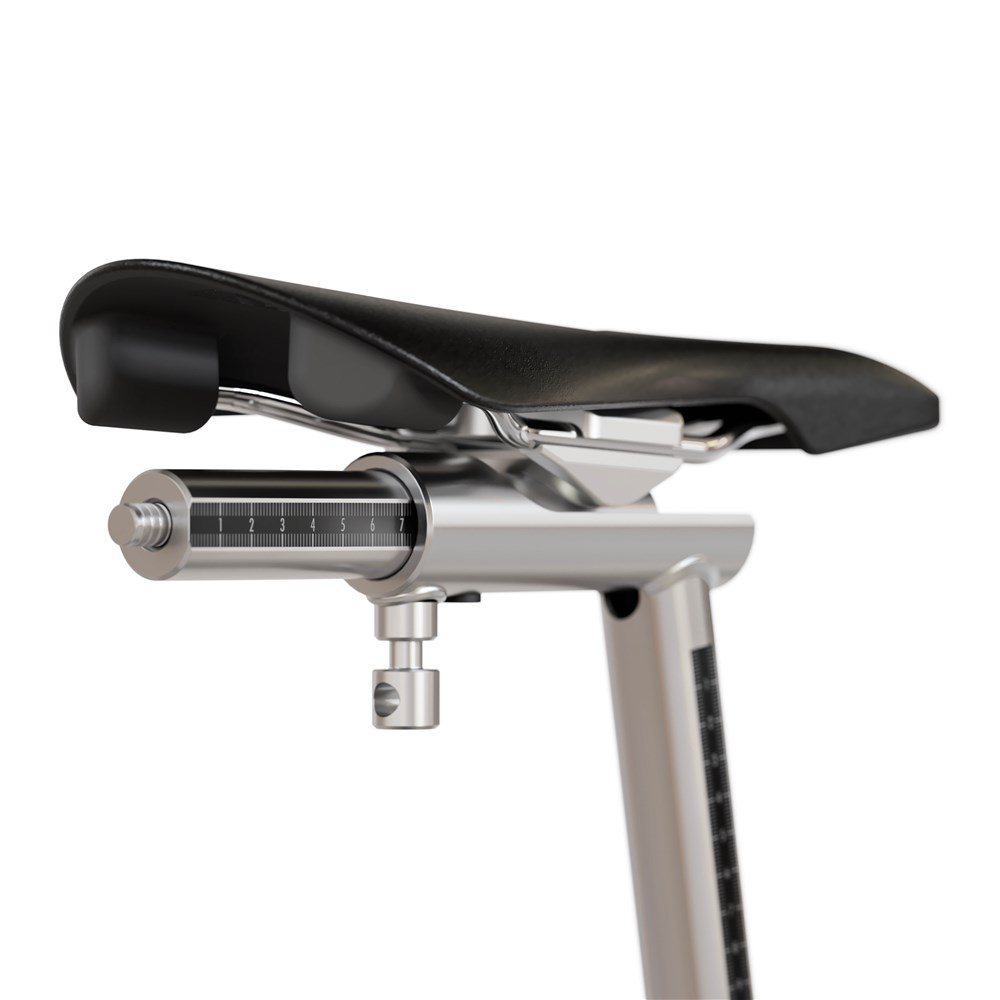

Height, inclination, and fore-aft adjustment of the saddle
Height and fore-aft adjustment of the handlebar
Length of the horizontal tube
Length of the cranks
Adjustable Crank Arm Length
Available adjustments: 165 mm, 167.5 mm, 170 mm, 172.5 mm, 175 mm.

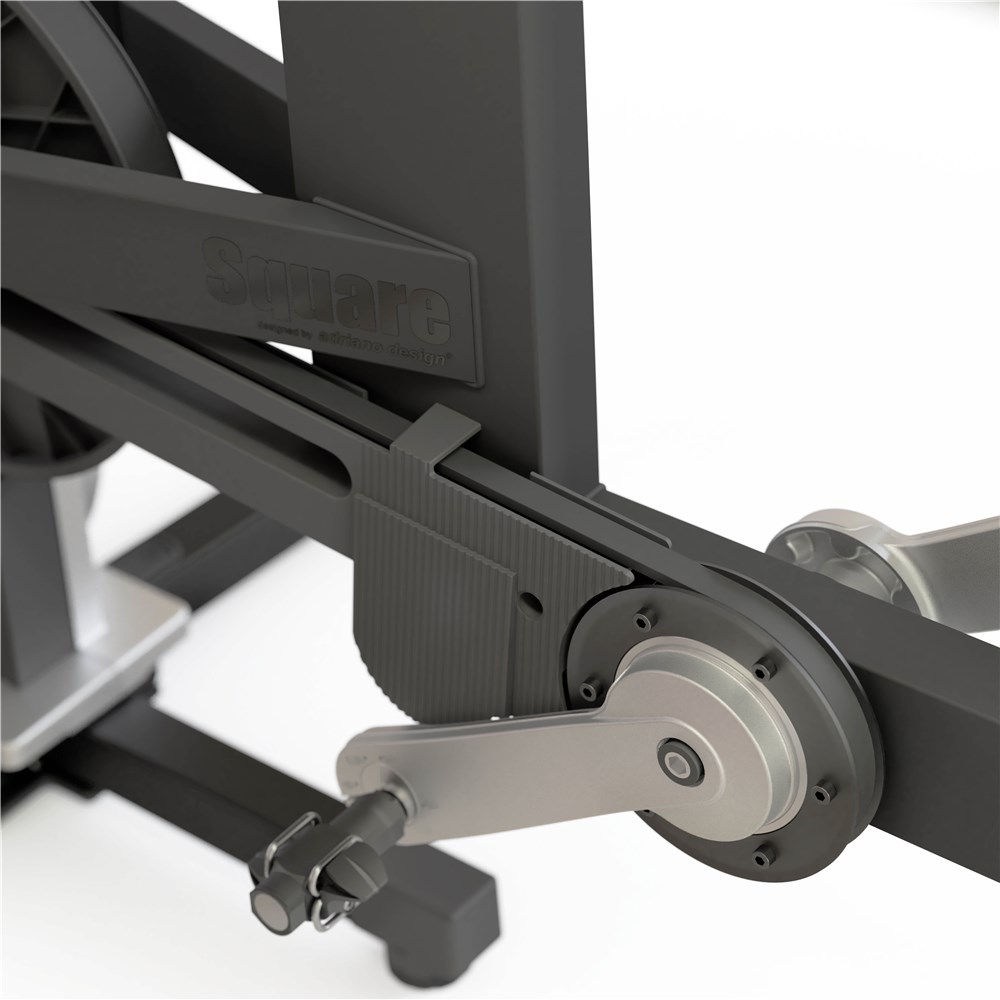

Unprecedented Silence
Thanks to the belt drive system, you can enjoy a smooth and silent ride like never before, free from any noise from the chain or smart trainer. With the benefit of absolute quietness and always clean operations, as the belt requires no lubrication and does not get dirty like chains on conventional frames.
Plug&Play
Setting up and connecting the Square frame is quick and hassle-free, thanks to its Plug & Play design powered by a battery, no requirement for an electrical outlet during use.
